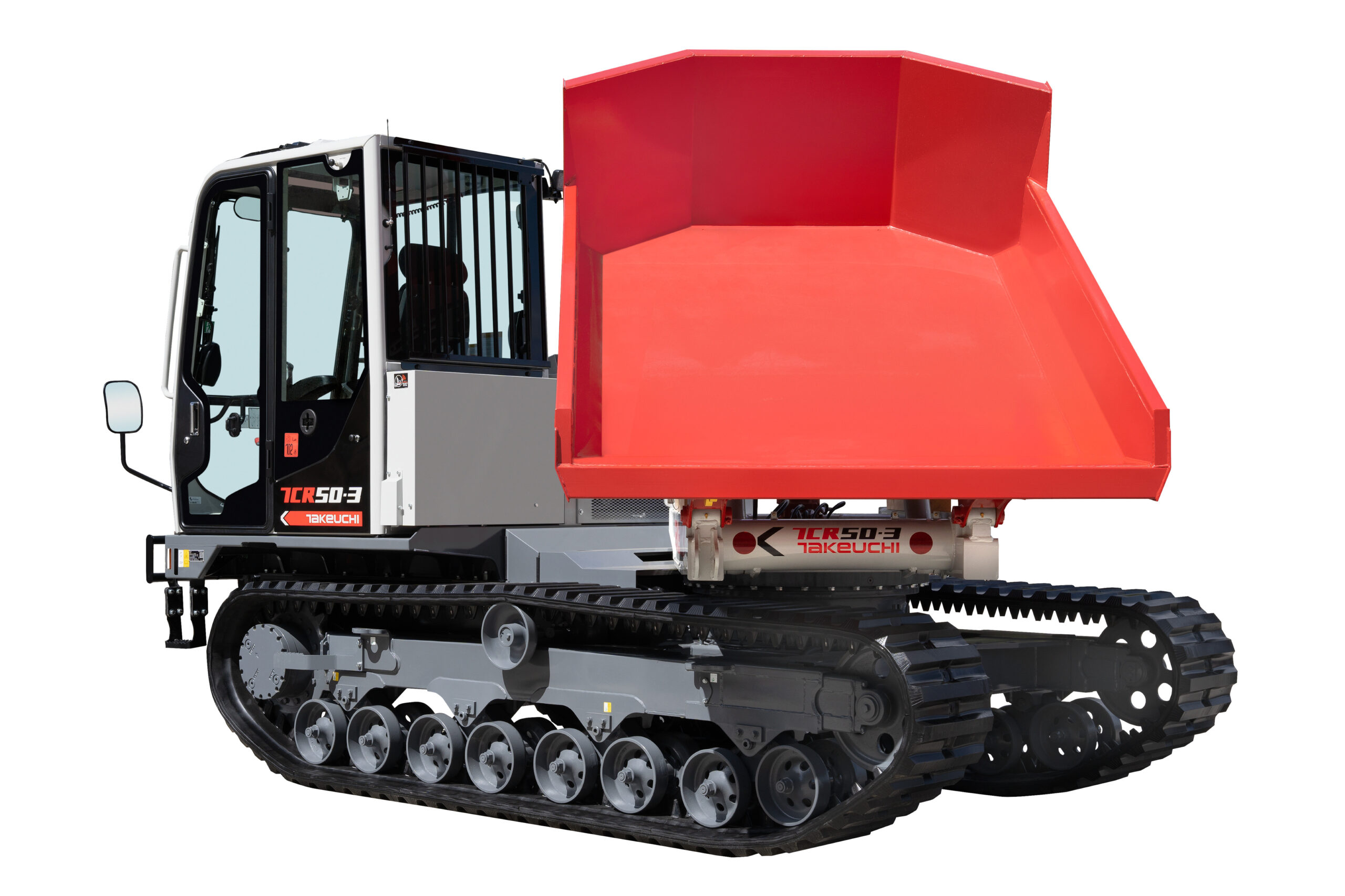

TCR50-3 Crawler Dumper

The new TCR50-3 crawler dumper offers improved functionality, performance, comfort, and serviceability.

With a generous 65-degree dumping angle and a maximum loading capacity of 3,700 kg, operators can discharge large amounts of soil with a single dumping stroke. The 180-degree turning dump enables efficient sideways dumping, reducing the need for unskilled operators to continually reposition the machine and helping prevent premature wear of the rubber tracks.

The automotive-style operator’s station includes a user-friendly 5.7” color multi-information display with a standard camera view function, hydraulic joystick controls, an adjustable suspension seat, a powerful air conditioner, a radio with USB support, and a large cup holder—delivering superior comfort and reduced operator fatigue. The hydraulic joystick controls provide smooth operation for both travel and dump body functions, while the foot throttle allows for more intuitive and economical engine speed control.

A wide-opening maintenance cover offers excellent access to the engine and routine inspection points. The standard fuel transfer pump allows operators to refuel the tank more easily and efficiently.

Models and Features may not be available in all Countries.

Product Details

Download PDF

Four Pillars

EU Stage V / EPA Tier 4 Compliant Engine with DPF – Provides outstanding output and greater torque while delivering a quiet ride.

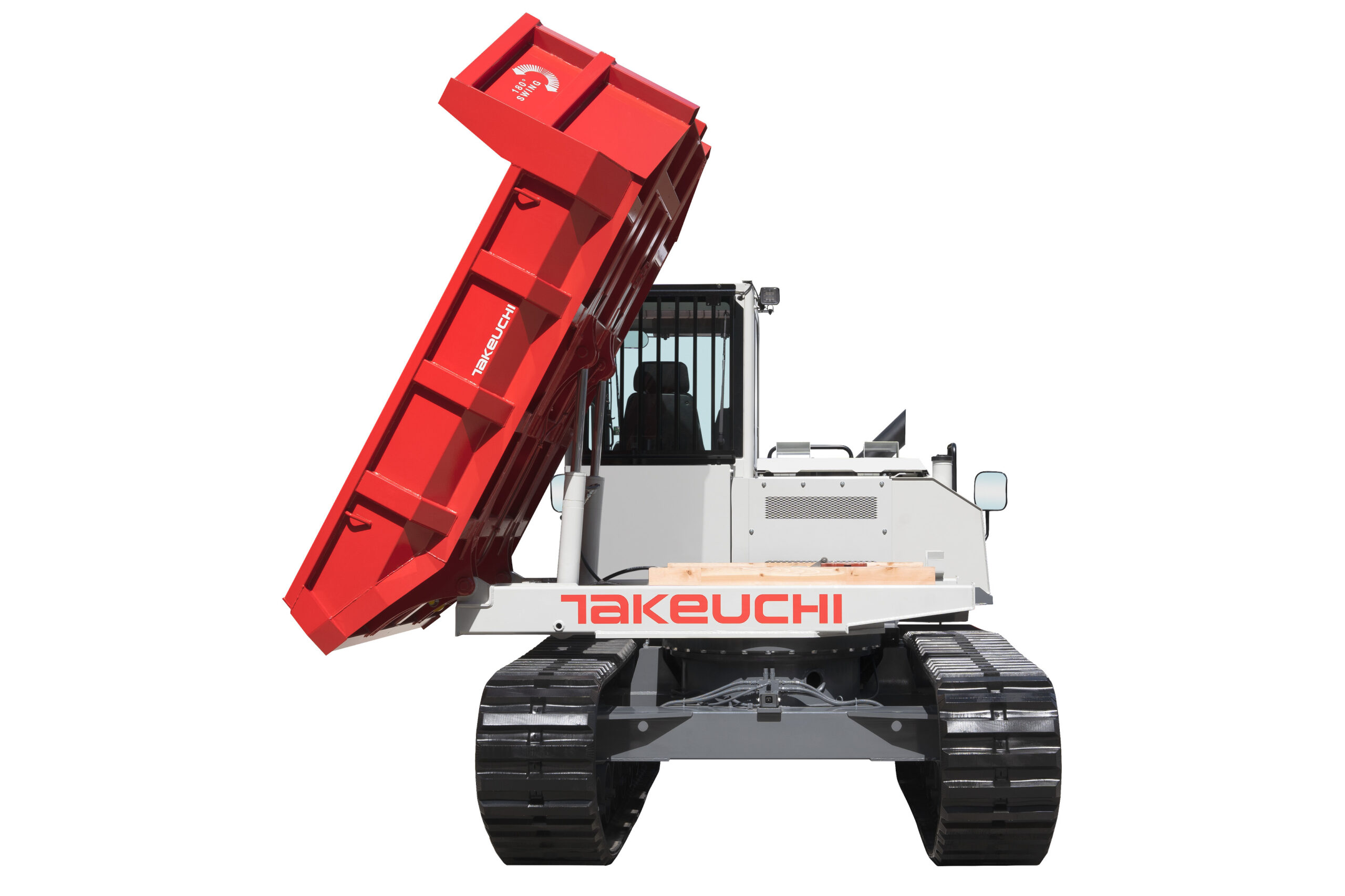

180 degree Turning Dump with Less Hang over – Reduces the need to continually reposition the machine, reducing early wear of rubber tracks.

65 degree Dumping Angle and 3,700 kg Maximum Loading Weight – Enables operators to have maximum soil discharge with just a single dumping stroke.

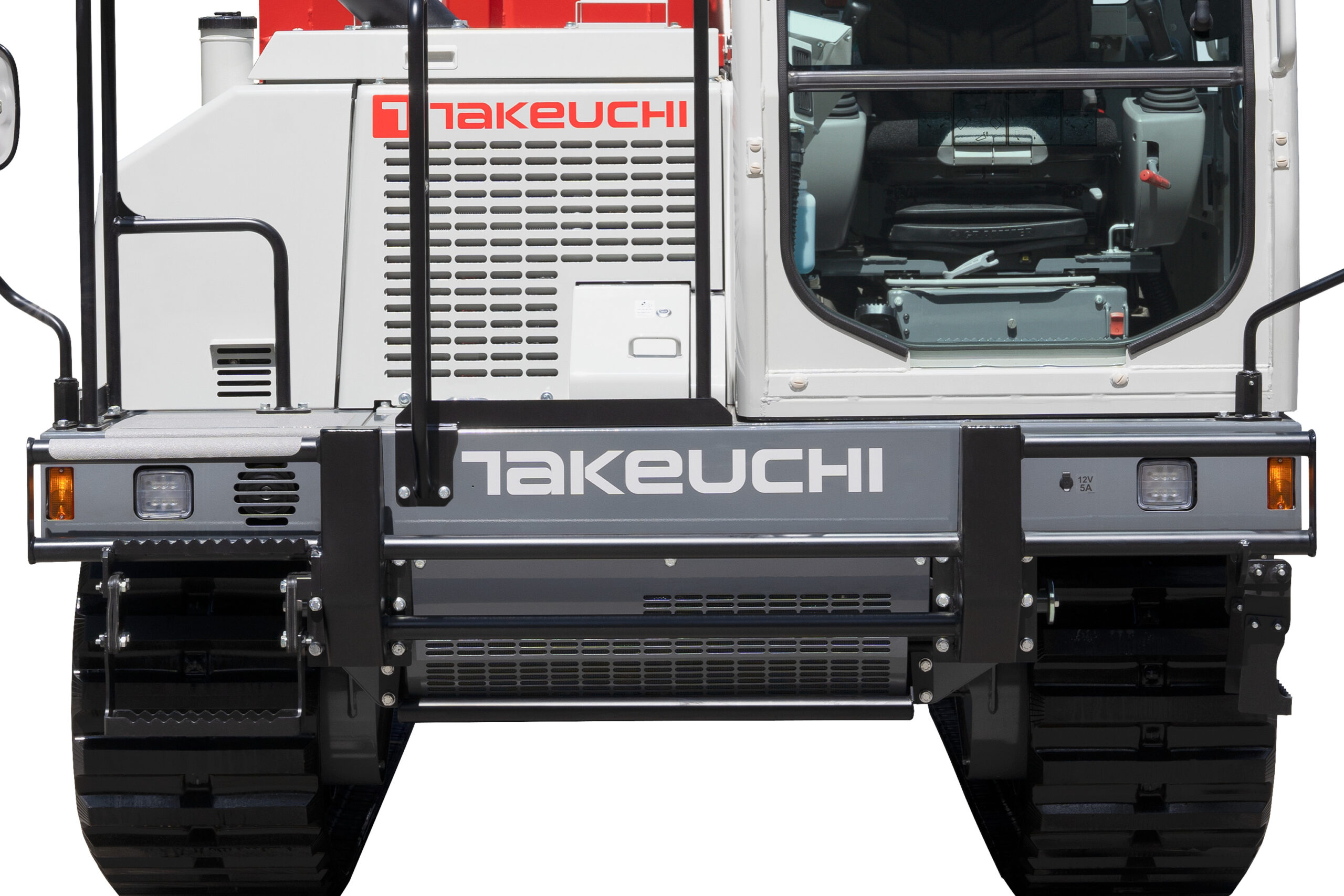

Two Forward Facing LED Work Lights – Improve visibility and safety in low light conditions.

Rear View Monitor – Highly improves visibility and safety around the machine.

All Steel Construction – The engine hood, right side access cover and front access cover are all steel for extra durability.

Heavy Duty Dump – Delivers the strength and durability that operators expect from the class leader.

ROPS / FOPS Cabin – Protects operators from machine rollover or falling objects in dangerous environments.

Spacious operator’s cab delivers outstanding visibility and high level of standard features.

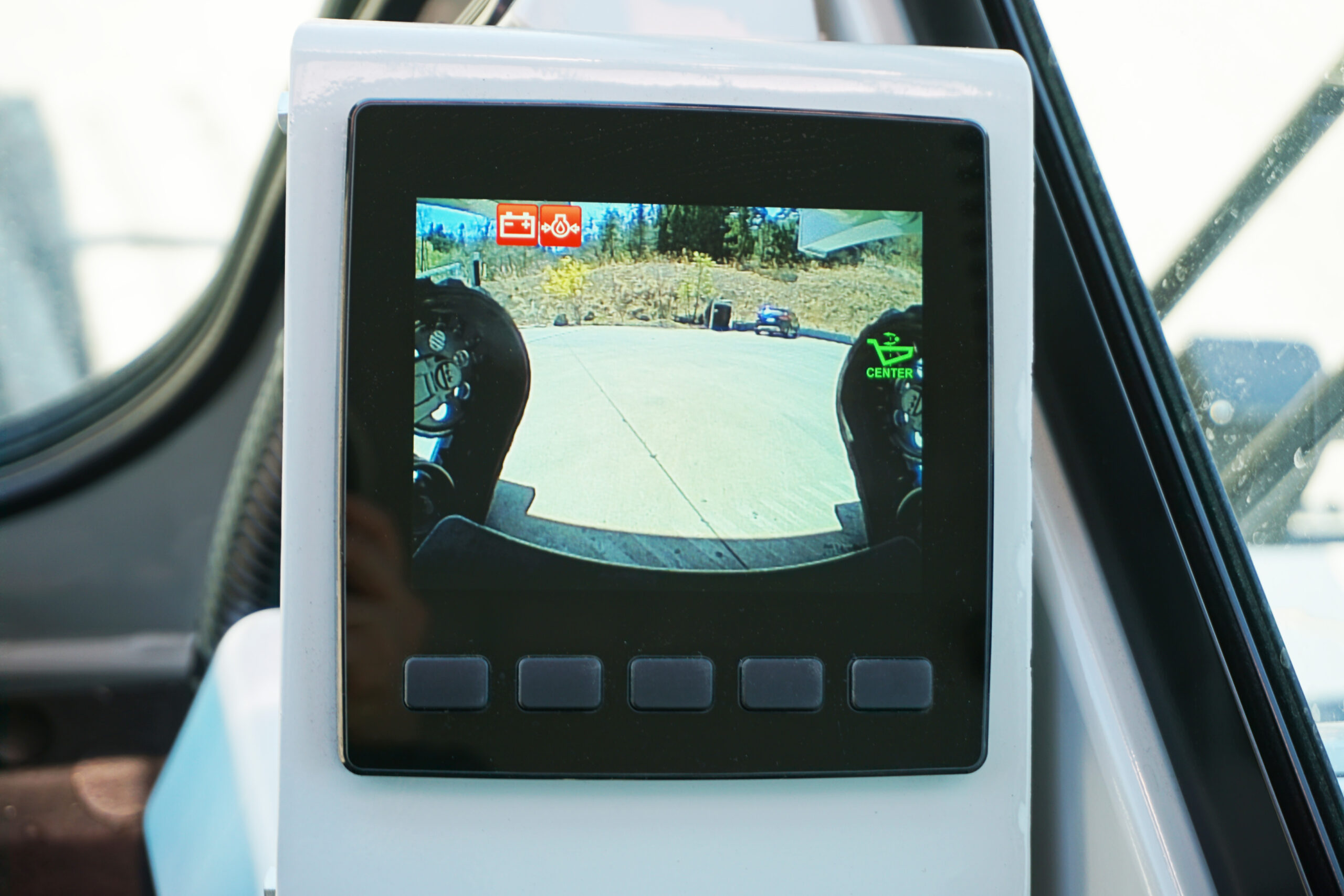

5.7” Multi-Informational Display – Provides critical machine information, overall machine health and allows operator to view rear camera.

Hydraulic Pilot Controls – Low effort, smooth controls allow the operator to have precise control for safe operation.

Spacious Floor Area – Reduces operator’s fatigue.

Wide Opening Maintenance Cover – Provides exceptional access to engine and routine inspection points.

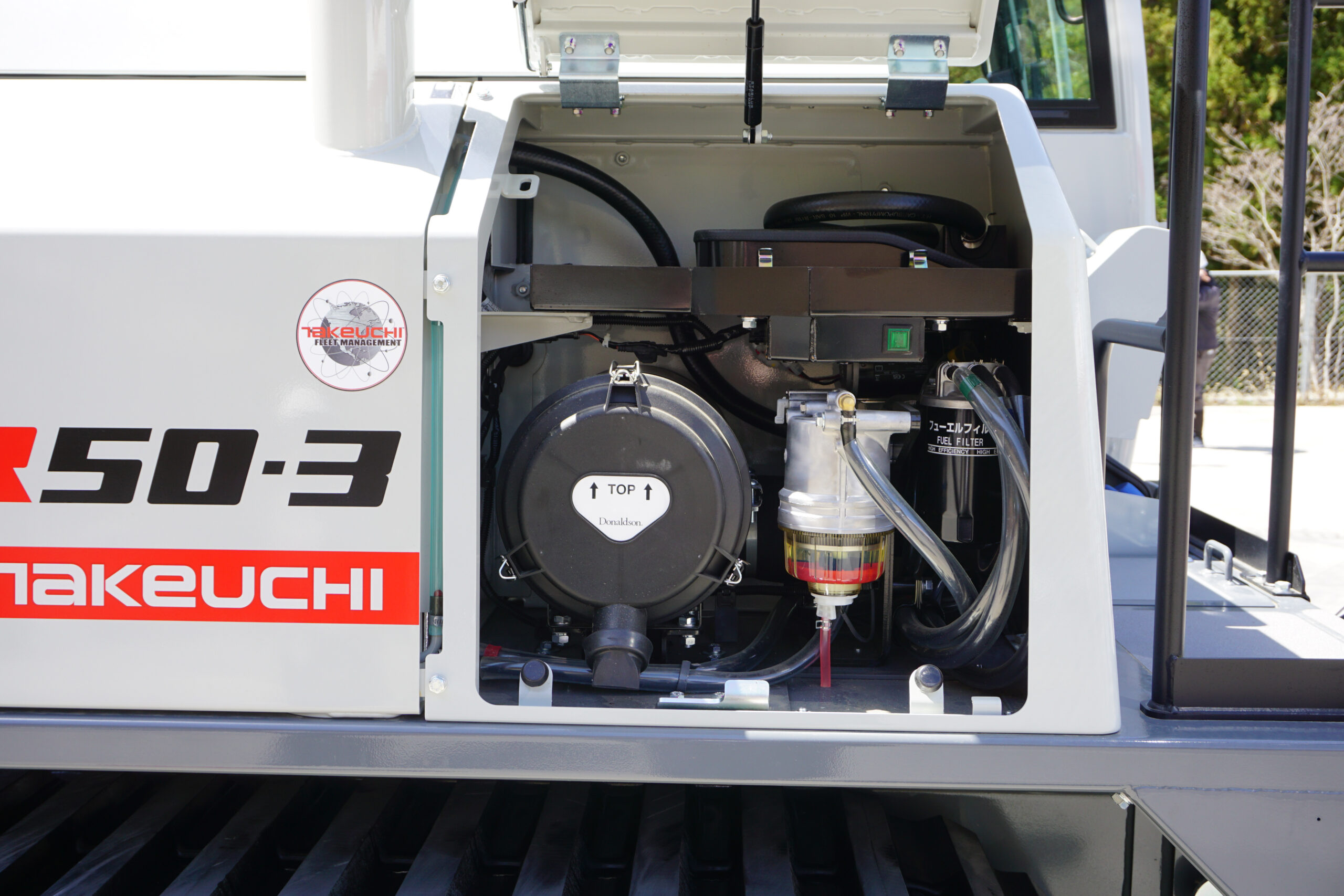

Right Side Access Cover – Provides excellent access to the fuel filter, water separator, double element air cleaner and fuel transfer pump.

Front Access Covers – Allow access to the DEF fill and battery.

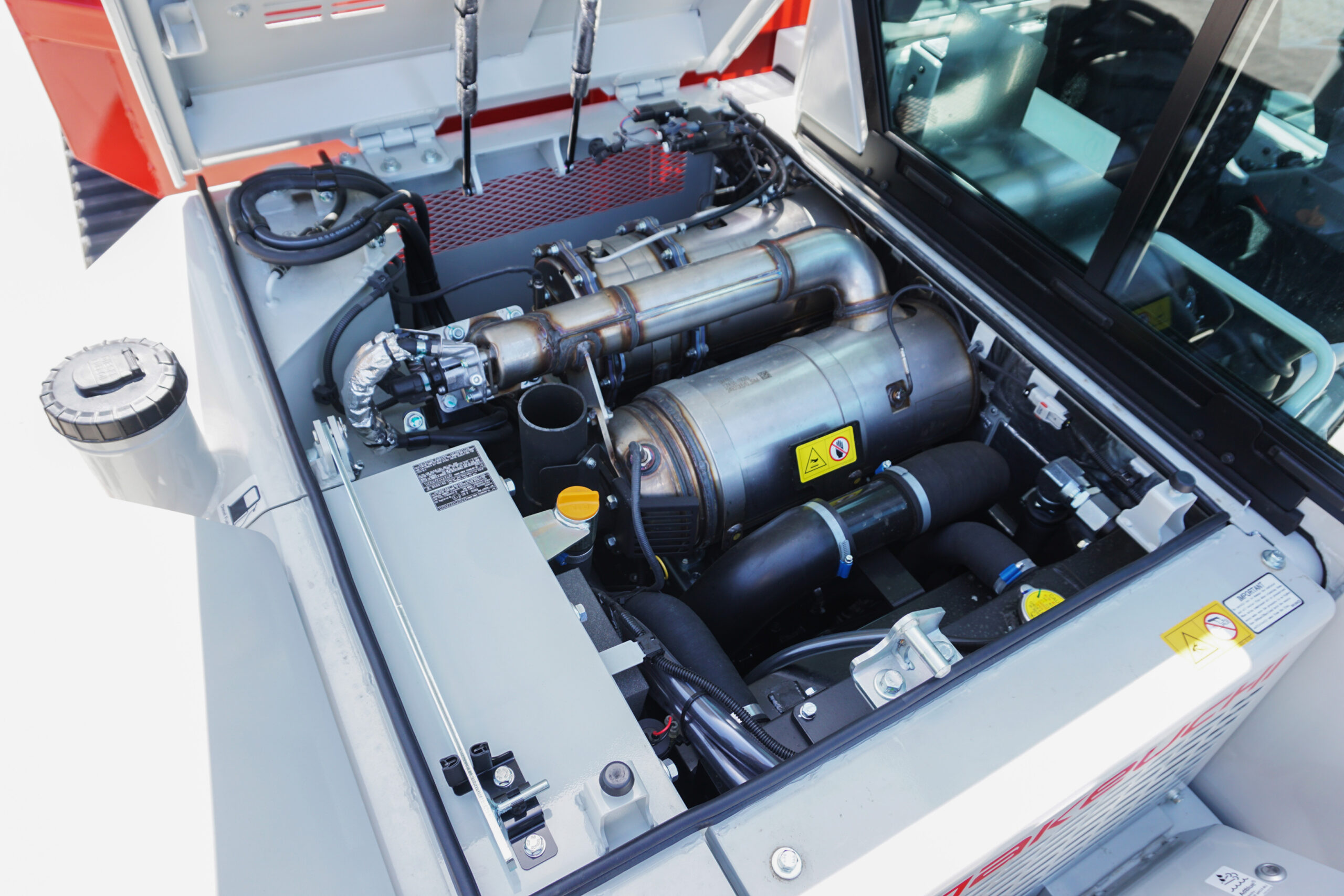

Engine Hood – Provides greater access to the engine oil fill, dipstick and engine.

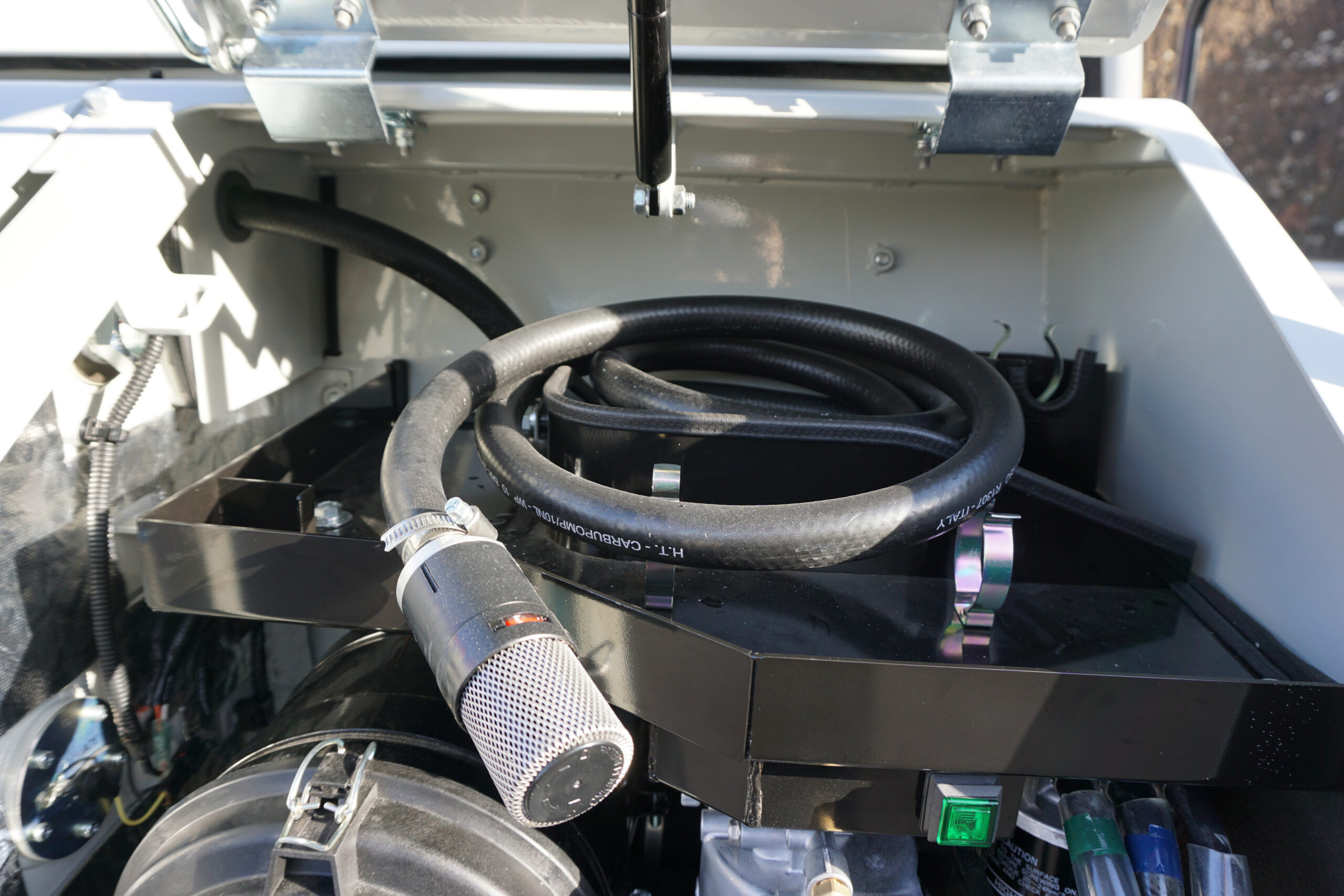

Standard fuel transfer pump – Enables operator to refill the tank with fuel more easily and quickly.
